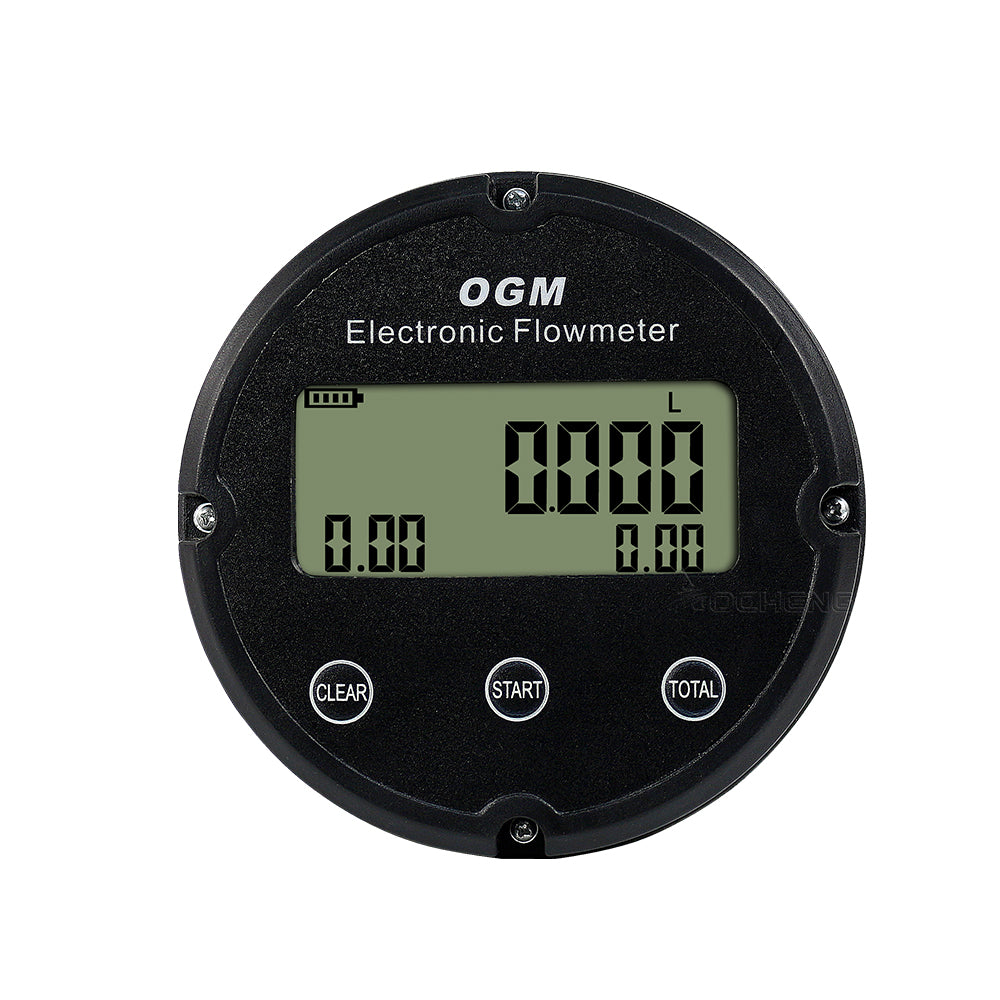

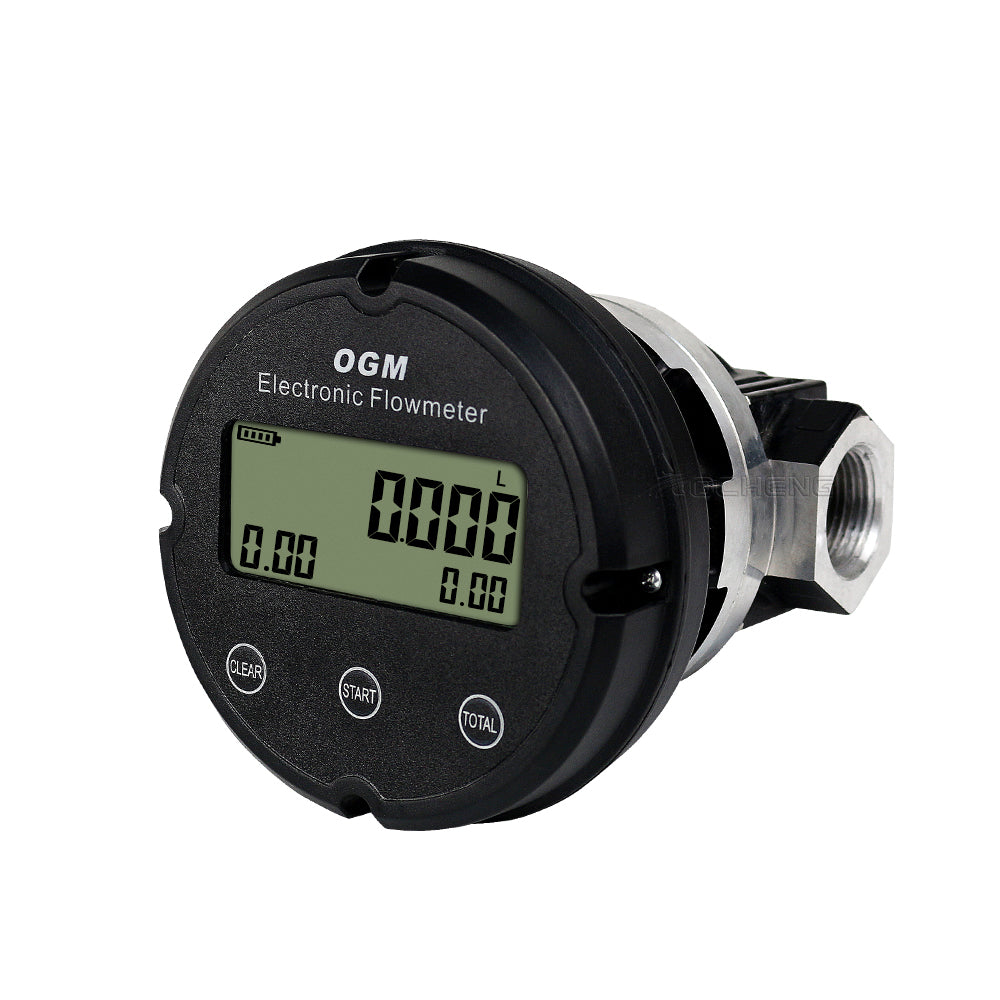

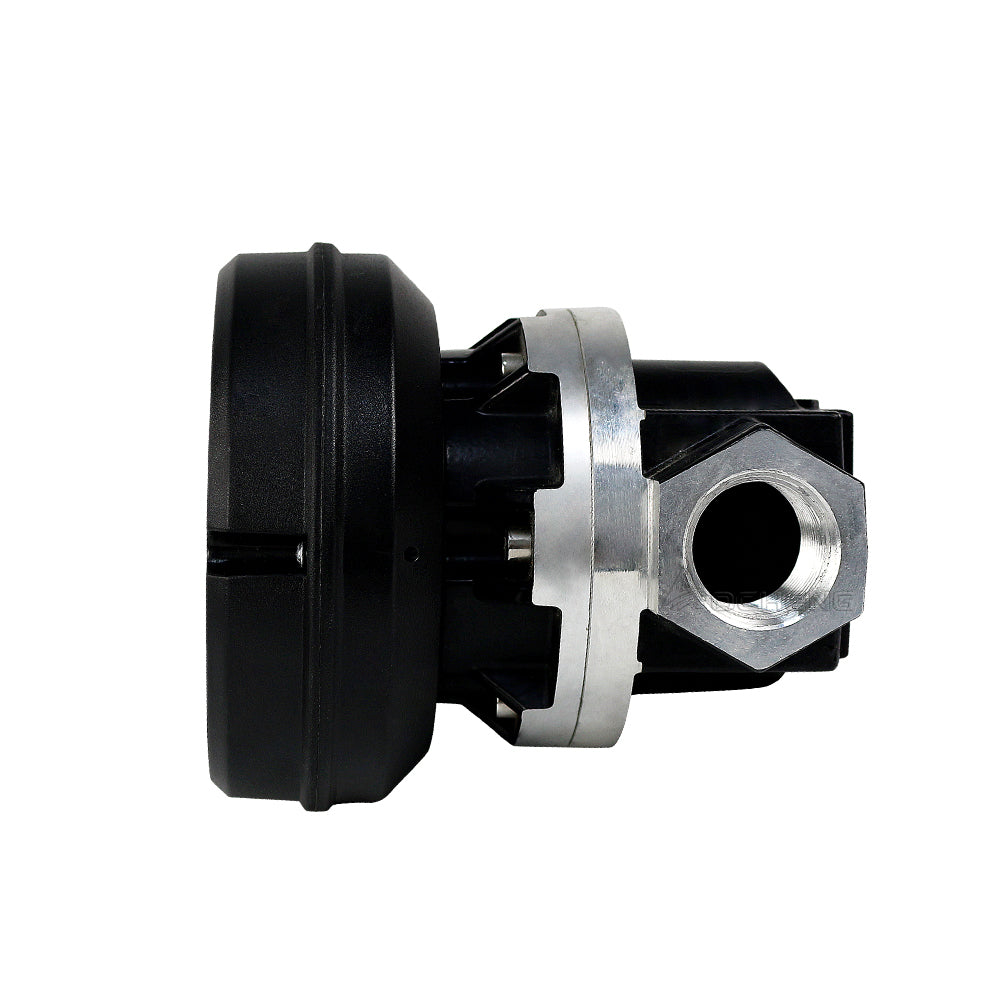

GH5602D Digital Fuel Meter, High Accuracy Oval Gear, 1-1/2” NPT, Diesel/Gas/Kerosene/Oil

Product Features:

• 1-1/2” NPT Ports — Fast, Standard Install
  Universal 1.5-inch NPT female threads fit most fuel transfer pumps, filter heads, tanks, and hose setups for an easy swap-in.

• Totalizer + Resettable Batch Register
  Built-in lifetime total tracks overall fuel usage, while the resettable batch lets you measure each fill-up accurately.

• High-Flow Performance: 6-60 GPM (25–250 L/min)
  Wide flow range handles everything from steady pump transfers to faster fills—ideal for transfer skids, tanks, and shop fueling.

• Accuracy: ±0.5%
  Designed for dependable readings in real-world fueling conditions with ±0.5% accuracy.

• Max Viscosity: 1000 CPS
  Compatible with thicker fluids like light oils and lubricants up to 1000 CPS (viscosity rating).

• Max Pressure: 1.8 MPa (18 bar / ~260 PSI)
  Rated for demanding transfer systems up to 1.8 MPa for reliable operation.

• Fuel + Oil Compatible
  Suitable for diesel, gasoline, kerosene, and light oils/lubricants (not for water-based fluids or aviation fuels).
